VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in San Francisco, CA | Meridian Windows and Doors San Francisco

The VLX 80 Fixed / Picture Window is what you choose when you want the view to be the entire point. It is a maximally glazed, fixed aluminum frame with no visible hardware, no moving parts, and nothing between you and the Golden Gate at sunset except clean, high-performance glass. Homeowners across San Francisco, from Noe Valley Victorians to new builds in Mission Bay, specify this window for floor-to-ceiling installations, stairwells, and any wall where maximum daylight matters more than ventilation. Meridian Windows and Doors San Francisco is an authorized ViewLux installation partner, which means you get factory-matched product expertise plus local, code-aware installation from one team. We carry this series, we measure for it, and we install it per AAMA standards. Call (831) 273-7126 to talk about your project.

Call (831) 273-7126

Product Overview – VLX 80 Fixed / Picture Window

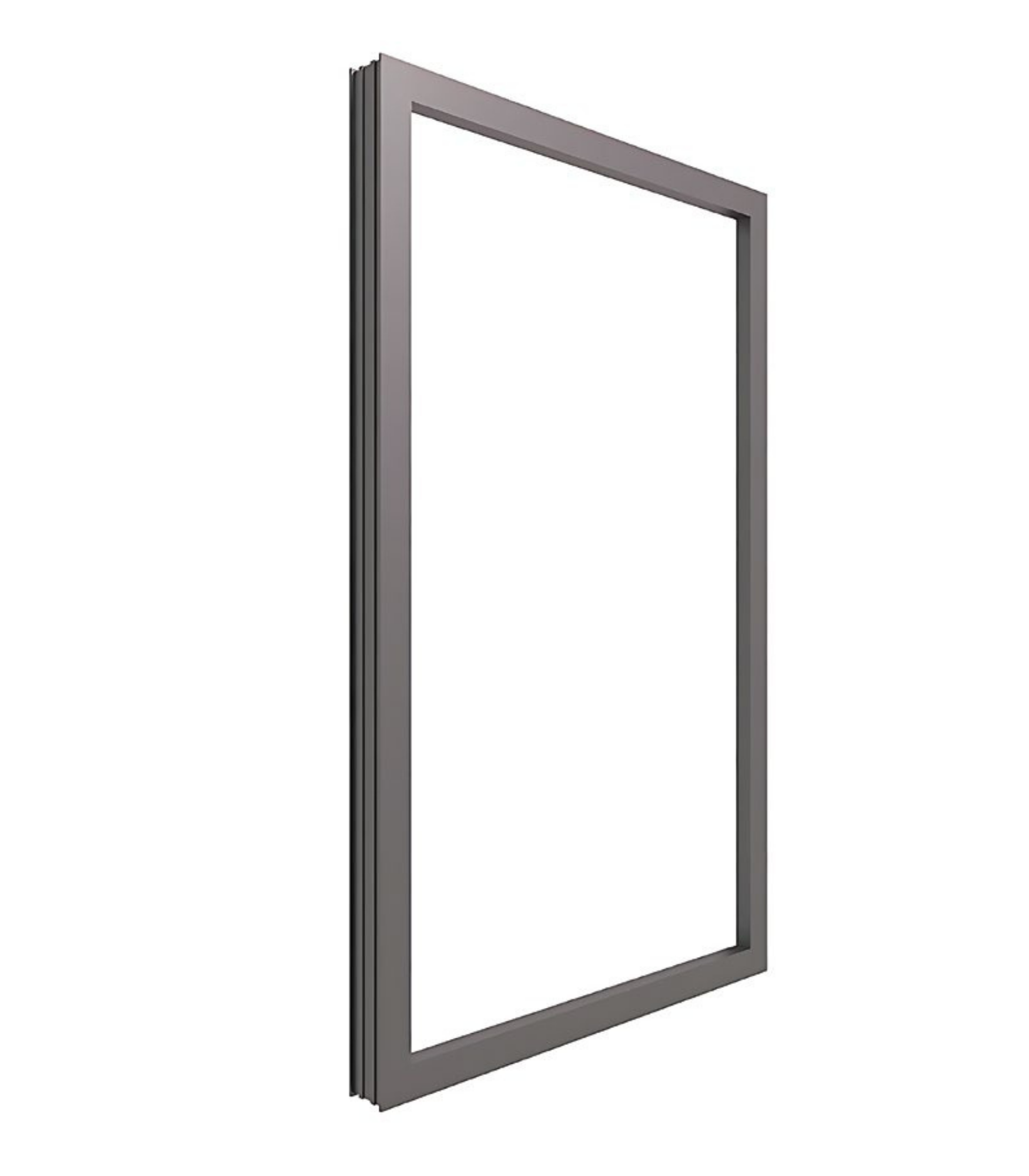

The VLX 80 is built around a simple idea: the less frame you see, the more window you experience. ViewLux engineered this fixed picture window with a profile width of just 1.97 inches, which is slim enough to disappear at the edges of the glass. The result is a nearly uninterrupted pane that can span up to 120 inches wide, making it a go-to choice for architectural focal points in San Francisco homes and commercial spaces alike.

Architects and homeowners choose the VLX 80 series for three reasons. First, the proportions. The narrow aluminum frame reads as crisp and minimal, which suits both mid-century modern remodels in the Sunset District and contemporary steel-and-glass additions in Potrero Hill. Second, the glass options. You are not locked into one type of glazing: clear, frosted, Low-E, tempered, laminated, gray tint, and black tint are all available, depending on privacy needs, solar control, and safety requirements. Third, the durability. Aluminum does not warp, swell, or rot the way wood can in San Francisco’s fog and wet winters, and with thermal break technology, it performs far better than old-school aluminum frames from the 1970s and 80s that many older homes still have.

This is a fixed window, meaning it does not open. That is not a limitation; it is the feature. Fixed windows are the most airtight and the least expensive way to get a large glass area in a wall. For rooms that also need airflow, many San Francisco projects pair one VLX 80 picture window with awning or casement windows on either side or below. Meridian Windows and Doors San Francisco can help you plan that configuration so the whole assembly looks intentional rather than pieced together. Call (831) 273-7126 and we will walk through your wall elevations.

Technical Specifications

• Frame material: Extruded architectural-grade aluminum with thermal break
• Wall thickness: 0.079 inches
• Profile width: 1.97 inches
• Maximum span: Up to 120 inches wide, depending on glass weight and wind-load requirements
• Operation: Fixed / non-operable (picture window)
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 installation standard compliance, AAMA 812 low-expansion foam sealant on perimeter joints
• Glazing: Single, dual, or triple-pane configurations available (dual-pane Low-E is the most common choice for San Francisco)
• Hardware: None visible – the fixed design requires no handles, locks, or hinges

Every project is sized to order. There is no warehouse rack of stock sizes here. That means your VLX 80 is fabricated to the exact rough opening in your San Francisco home, down to a fraction of an inch.

Performance Features

Thermal Efficiency – The VLX 80 uses a polyamide thermal break between the interior and exterior aluminum faces. This breaks the conductive path that makes old aluminum windows feel cold to the touch. Paired with Low-E glass, the VLX 80 carries NFRC-rated energy performance numbers that meet or exceed California Title 24 requirements. For San Francisco homeowners, that means less radiant heat loss through glass in July fog and better indoor temperature stability year-round.

Acoustic Performance – Living on Divisadero, Valencia, or any bus line means street noise never fully stops. A fixed picture window is inherently the quietest window type because there are no operable sashes to leak sound. Add laminated glass, which has a PVB interlayer that dampens sound transmission, and you get meaningful decibel reduction. San Francisco clients who back up to Muni lines or live near hospital corridors consistently notice the difference after swapping old single-pane frames for VLX 80 units.

Airtightness & Weather Seal – Fixed windows have no weep channels, no sash gaps, and no compression seals to wear out like an operable window. That construction gives the VLX 80 excellent air-infiltration ratings. During installation, we apply AAMA 812 low-expansion foam sealant to the entire perimeter joint, which eliminates the hairline gaps where conditioned air escapes and exterior air sneaks in. This is part of the AAMA 2400/2410 installation standard we follow on every San Francisco project.

Waterproofing – San Francisco sees real rain and horizontal wind-driven moisture. The VLX 80’s fixed design, combined with a proper perimeter seal and integrated sill pan or flashing at the rough opening, sheds water instead of absorbing it. Aluminum does not rot, and with the AAMA 812 foam sealant around every joint and a final water test after install, there is no path for moisture to reach the wall cavity. We have replaced too many rotted wood frames in the Castro and West Portal to take this lightly.

Wind Resistance – Homes on Twin Peaks, in the Outer Sunset, and anywhere above the fog line get hit with real wind. The VLX 80’s 0.079-inch wall thickness and structural aluminum frame are wind-load rated for California coastal climate requirements. For oversized spans, we size the glass thickness and frame reinforcement to the specific exposure of your building, per code and manufacturer engineering tables. San Francisco building departments accept the engineering when it is done this way.

Security & Hardware – A fixed window is a deterrent by design. There is no latch to pry, no sash to jimmy. The glass sits locked into the frame. For ground-floor installations or homes in higher-traffic neighborhoods, ViewLux offers an impact-resistant laminated glass option that holds together even if struck. Tempered glass is also available and required by code for windows near walking surfaces, doors, or when the sill is within 18 inches of the floor in some San Francisco permit applications.

Color & Glass Options

The VLX 80 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Premium Black is the most requested finish in San Francisco right now, especially on new construction and modern remodels where dark metal frames against white stucco or cedar siding create the contrast buyers want. Pure White and Anodized Silver feel quieter and more traditional, which suits the Sunset District and Richmond District houses that lean mid-century or cottage-style. Bronze and Champagne land somewhere in between and work especially well on Edwardian and Art Deco buildings. Teak Wood gives you the warmth of wood-grained texture with the weather resistance of aluminum, popular for interiors where clients want a warmer material language without maintenance.

On glass, clear is the default for unobstructed views. Low-E is the workhorse for any San Francisco home that runs heat regularly, since it reflects interior heat back into the room and reduces solar gain in summer. Frosted glass works for bathrooms, stairwells, or side elevations where privacy outweighs the view. Laminated glass adds sound control and impact resistance. Gray and black tint are the right call for west-facing walls in the Outer Sunset or Mission Bay condos where afternoon glare turns a living room into a greenhouse.

Installation by Meridian Windows and Doors San Francisco in San Francisco

Installation is where most window projects in San Francisco succeed or fail. The best-engineered window in the world leaks, fogs, and underperforms if it is set out of level, out of plane, or sealed incorrectly. And here is the detail most people do not hear until it is too late: a manufacturer’s warranty covers defects in the product, not defects in the installation. If the window is installed wrong, ViewLux’s warranty does not apply to the resulting failure. That is precisely why Meridian Windows and Doors San Francisco runs every VLX 80 install through a controlled process.

It starts with a pre-install inspection of the rough opening. We check the framing for rot, inadequate support, and out-of-square conditions before a single shim goes in. San Francisco’s older housing stock, built between 1900 and 1940 in many neighborhoods, frequently has openings that have shifted. We correct what needs correcting and document what we find.

We set every VLX 80 level, plumb, and square. Shims are placed at manufacturer-specified points, never wherever is convenient. The frame is anchored per engineering requirements for the wall type, whether that is wood stud, steel stud, or concrete. Then comes the seal: AAMA 812 low-expansion foam around the entire perimeter joint. This is not optional caulk; it is the continuous air and moisture barrier that makes the window perform. Flashing and sill pans go in before the window on openings that need them.

After the window is set and foamed, we run a final water test on a test basis, inspect the interior and exterior finish, and clean the site. The entire installation follows the AAMA 2400/2410 standard, which covers installation of windows in exterior walls. This is the standard local building inspectors and manufacturers expect. We pull permits when required, and we know San Francisco’s building code amendments well enough to flag issues before inspection day. Call (831) 273-7126 to talk about your opening sizes and we can tell you exactly what the install will involve.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window? Figure on four to six weeks from final measurement to delivery at your San Francisco job site, depending on glass type and finish. Laminated and tinted glass options can add a week. We confirm the schedule when you place the order, and measurement happens before the order is placed, not after. Call (831) 273-7126 and we’ll give you a current lead time for your specific configuration.

Does the VLX 80 qualify for energy tax credits? The VLX 80 with Low-E dual-pane glazing can qualify for federal energy-efficiency tax credits if the glass package meets the current ENERGY STAR Most Efficient criteria for the Northern California climate zone. Eligibility depends on the exact glazing configuration and U-factor. We can spec the right glass package up front and provide the documentation your CPA needs for the credit. Call (831) 273-7126 and ask about qualifying glass packages.

What warranty comes with the Fixed / Picture Window? ViewLux provides a limited manufacturer warranty on the frame and a separate warranty on the insulating glass unit, which covers seal failure and fogging between panes. The warranty is valid only when the window is installed per ViewLux’s published installation guidelines and AAMA standards, which Meridian Windows and Doors San Francisco follows on every project. We register the warranty for you after install. Call (831) 273-7126 if you want a copy of the warranty language before you commit.

Can I customize the size of the VLX 80? Yes. The VLX 80 is fabricated to order up to a maximum span of 120 inches wide. Height is flexible within structural limits for the glass weight and wind load at your specific San Francisco address. Oversized units may require thicker glass or frame reinforcement, which we verify during the site measurement. If you want a window that spans an entire wall, call (831) 273-7126 and we’ll tell you what is feasible for your project.

How do I maintain aluminum frames? Wash the frame with mild soap and water once or twice a year, and wipe down the glass with a non-ammonia cleaner. That is the whole routine. Aluminum does not need painting, sealing, or rust treatment. In San Francisco’s salty coastal air, a quarterly rinse is a good idea for homes within a few blocks of the ocean to keep salt residue from accumulating on the finish. If you ever notice condensation between panes, that signals a seal failure and a warranty claim. Call (831) 273-7126 and we can evaluate it.

Get a Quote – VLX 80 Fixed / Picture Window in San Francisco

If you are planning a remodel, a new build, or a replacement project and the VLX 80 Fixed / Picture Window is on your list, let us price it accurately. We will measure your openings, spec the right glass package for your exposure, and give you a written line-item quote with no surprise change orders. Call (831) 273-7126 to schedule a free on-site measurement in San Francisco.

Written by the team at Meridian Windows and Doors San Francisco, authorized ViewLux installation partner serving San Francisco, CA and the Bay Area.
