VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in San Francisco, CA | Meridian Windows and Doors San Francisco

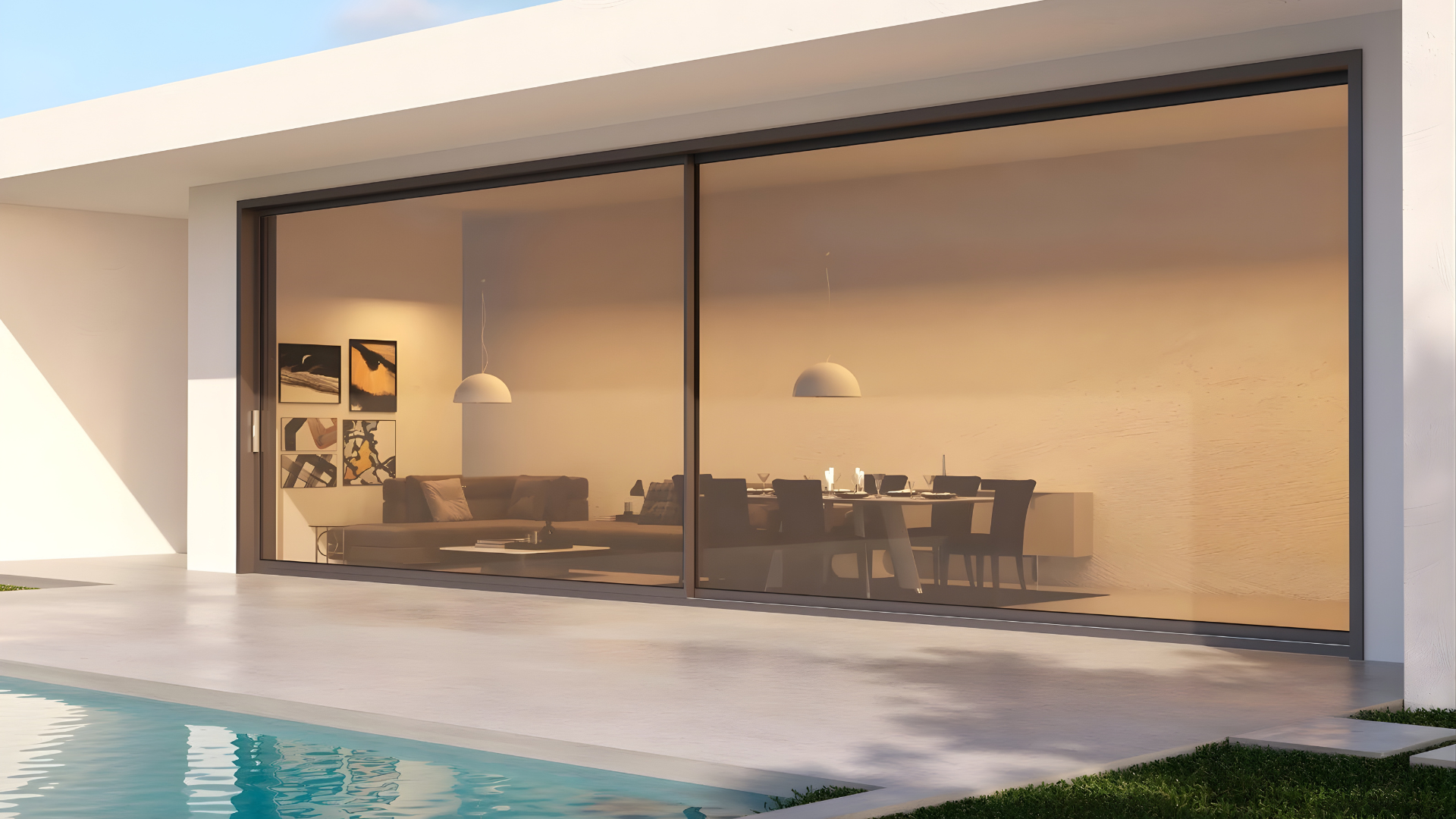

The VLX 150 Heavy-Duty Sliding Door is a large-span aluminum slider built for San Francisco homes where glass area, structural strength, and smooth operation all matter. We’re Meridian Windows and Doors San Francisco, an authorized ViewLux installation partner, which means we sell this door, install it to AAMA 2400/2410 standards, and stand behind the work. It’s a strong choice for replacing old patio sliders in Noe Valley Victorians, opening up top-floor units in the Mission, or spanning wide openings in new construction out toward Ocean Beach. Panels can run up to 24 feet wide with multi-track configurations, so you’re not limited to the standard 6-foot slider. Call (831) 273-7126 for a free on-site measurement and quote.

Call (831) 273-7126

Product Overview – VLX 150 Heavy-Duty Sliding Door

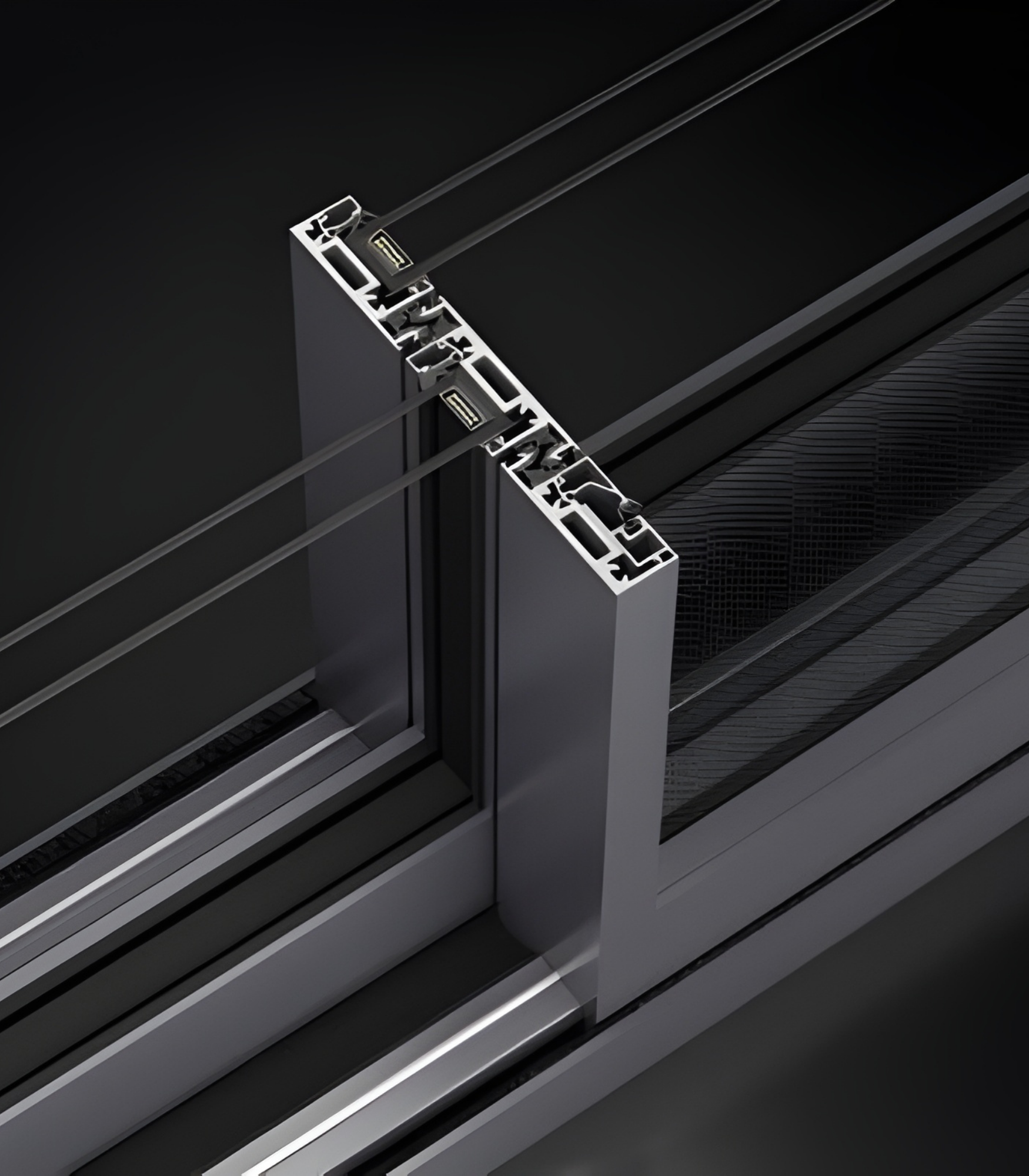

The VLX 150 sits in ViewLux’s lineup as the strength-focused model. Where smaller series doors prioritize budget, this one prioritizes span. The frame is built on a 2.95-inch profile with 0.118-inch wall thickness, which means the aluminum extrusion itself carries serious structural load without flexing. That’s the difference between a sliding door that glides ten years after installation and one that starts binding, sagging, or dragging along its track after two San Francisco winters.

The hardware is stainless steel throughout: rollers, track guides, locking mechanisms, and pull handles. Stainless matters in San Francisco because fog, salt air near the Sunset and Richmond districts, and regular condensation cycles chew through plated steel fasteners quickly. The VLX 150’s stainless components shrug that off.

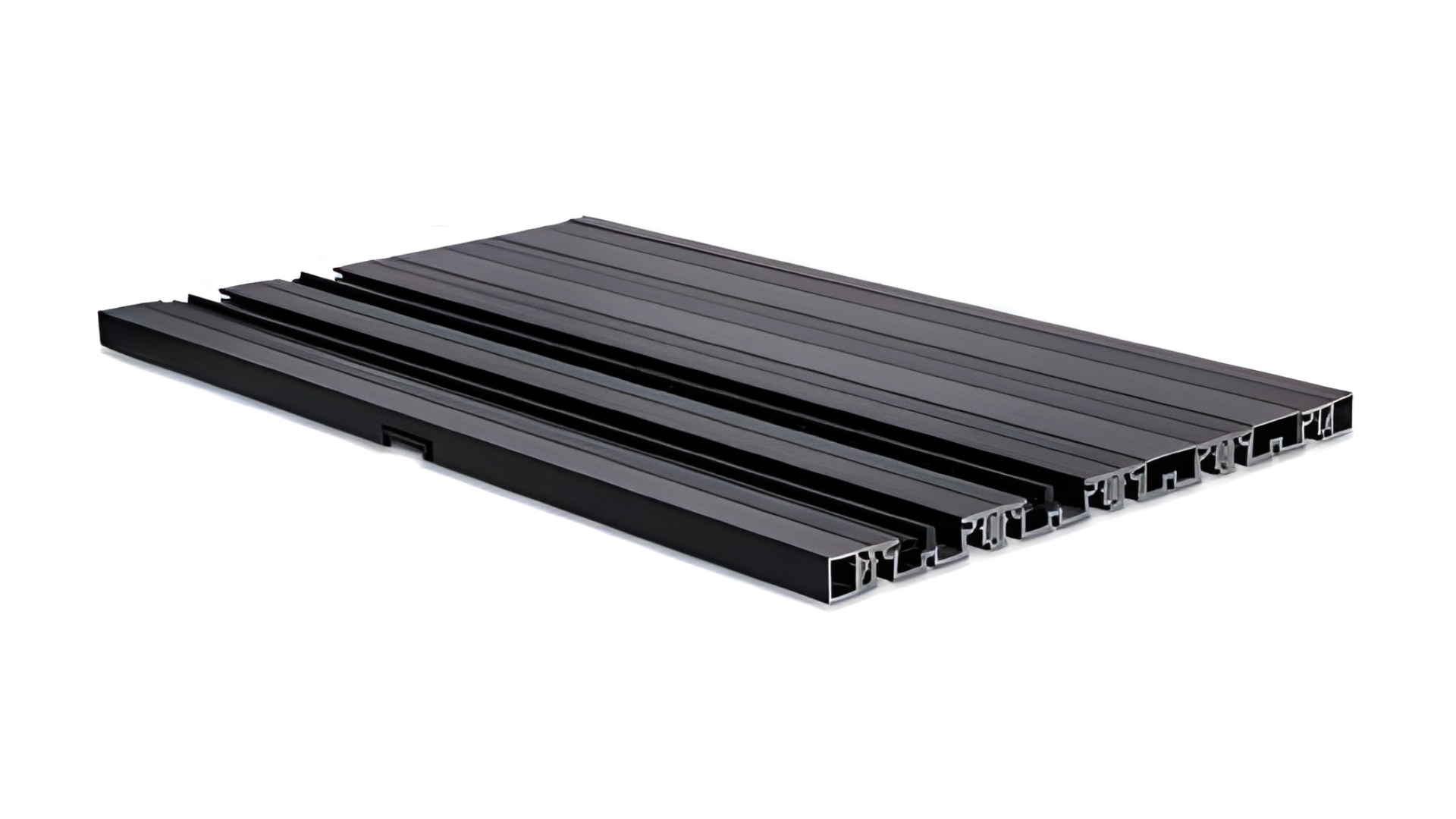

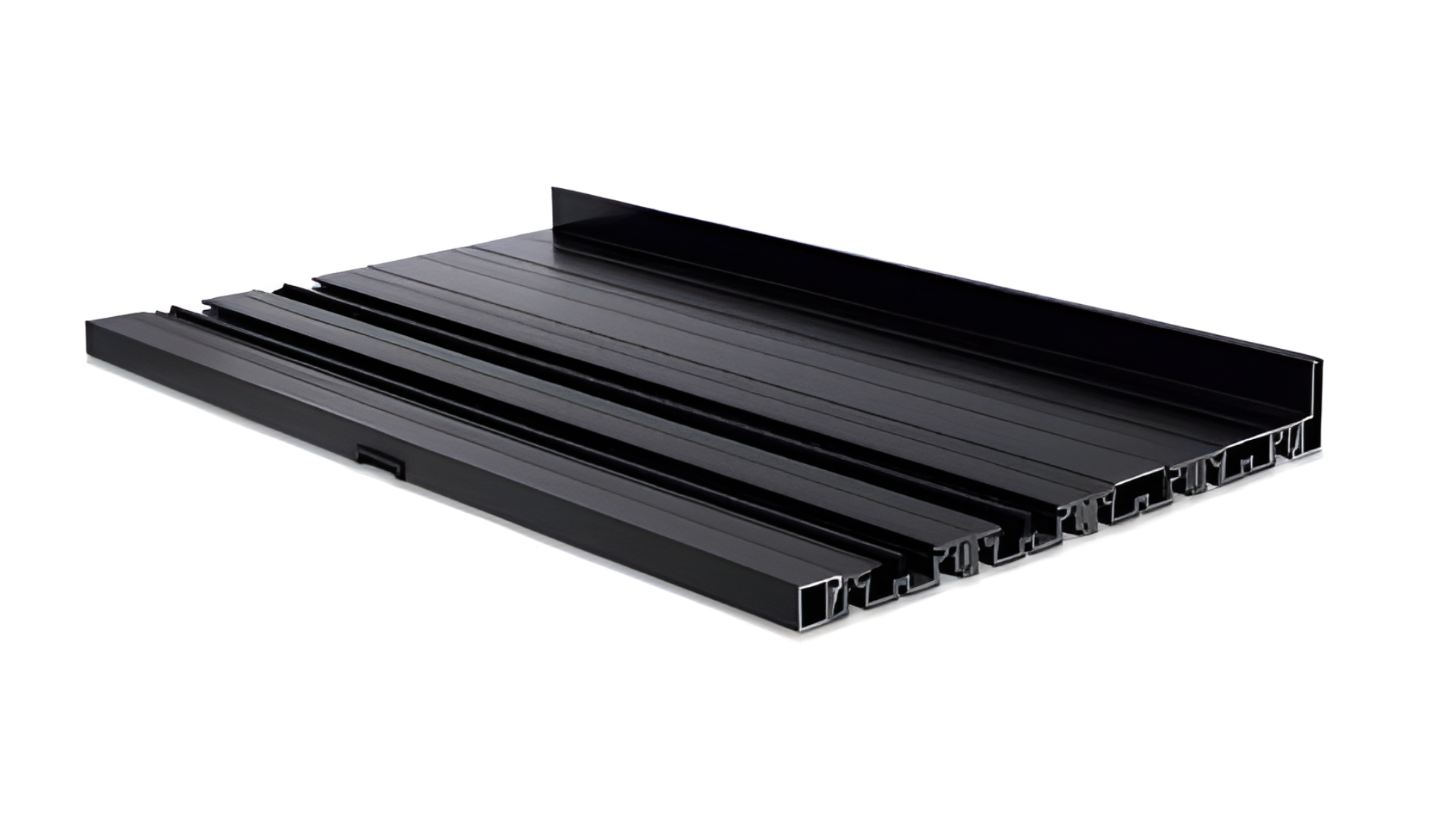

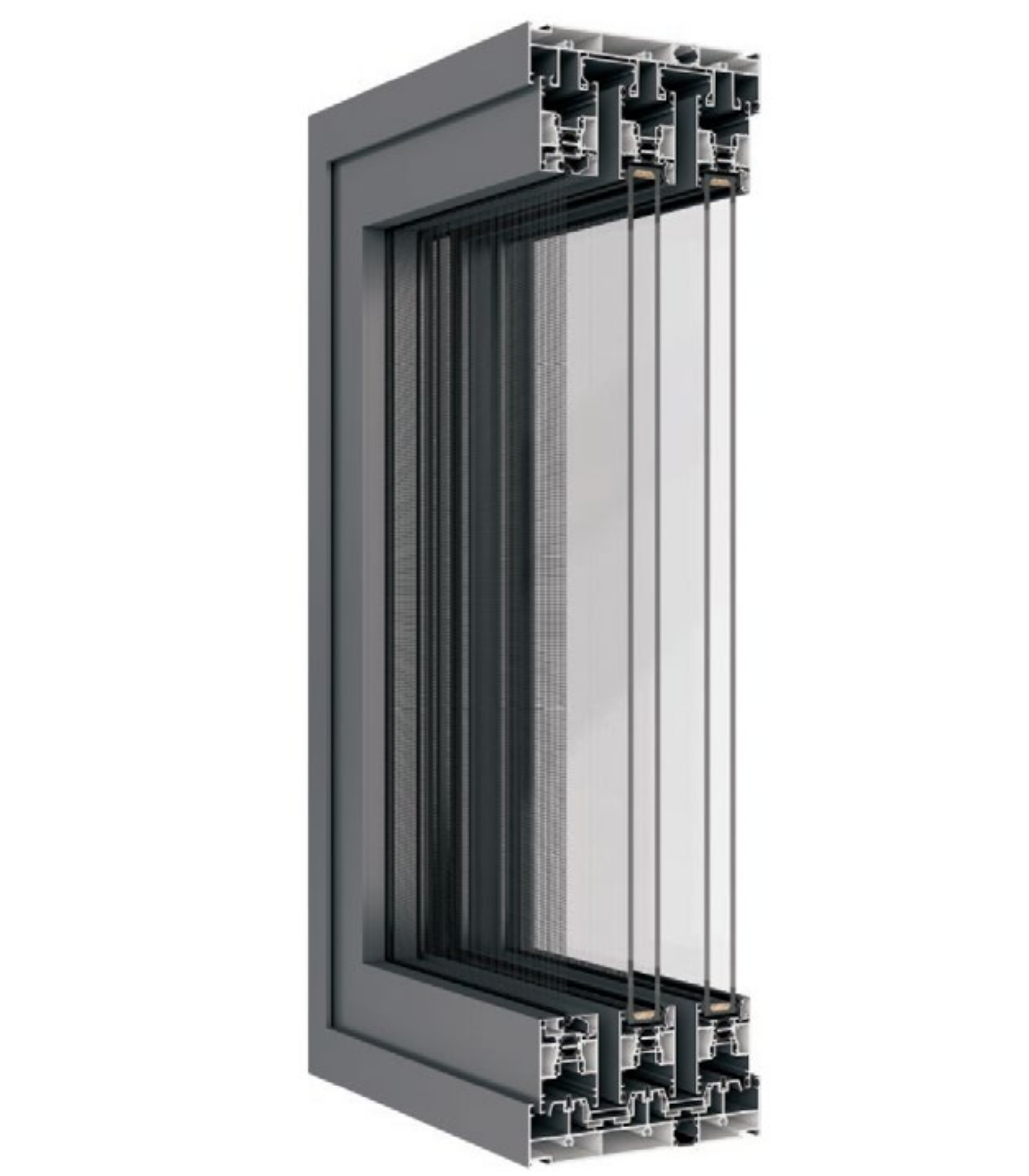

Multi-track configurations are where this door earns the “heavy-duty” label. The 2-track setup gives you a single sliding panel and one fixed panel. The 3-track lets two panels slide, which opens two-thirds of the opening. The 4-track configuration stacks panels efficiently for very wide openings, which is what you want if you’re spanning 20 to 24 feet across a living room wall facing a yard or a view corridor. This is the door homeowners in neighborhoods like Pacific Heights or Diamond Heights choose when they want an entire wall of glass that actually opens, not just looks good closed.

Technical Specifications

Here are the numbers that matter when you’re comparing the VLX 150 against other heavy-duty sliders. Wall thickness of 0.118 inches is roughly 25 to 35 percent thicker than the extrusion you’ll find on standard residential sliders. This is a real structural difference, not a spec-sheet rounding error. Maximum span is up to 24 feet wide, which covers nearly any residential opening in San Francisco, including garage conversions, storefront-style residential entries, and indoor-outdoor living rooms. If your opening is wider than 24 feet, we’d need to look at a custom engineering review, but in practice that almost never comes up for residential work in the city.

• Profile width: 2.95 inches
• Wall thickness: 0.118 inches
• Maximum span: up to 24 feet wide
• Track configurations: 2-track, 3-track, 4-track
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, Sliding Screen
• Performance: Thermal break technology, NFRC-rated energy performance, AAMA 812 perimeter sealing, AAMA 2400/2410 installation compliance

Performance Features

Every performance claim below is tied to a specific standard or design feature, not marketing language. Here’s what the VLX 150 actually does in a San Francisco installation.

Thermal Efficiency. The frame uses a thermal break, which separates the interior and exterior aluminum surfaces with a non-conductive barrier. Without it, aluminum conducts heat straight through the frame. With it, the door achieves NFRC-rated energy performance and won’t sweat or radiate cold into your living room during July fog.

Acoustic Performance. San Francisco noise isn’t just traffic. It’s the 38 Geary bus at 6 a.m., garbage pickup in the alley, the neighbor’s HVAC condenser. The VLX 150’s heavy extrusion mass combined with laminated glass reduces exterior sound transmission noticeably compared to a standard single-pane slider or a hollow vinyl frame.

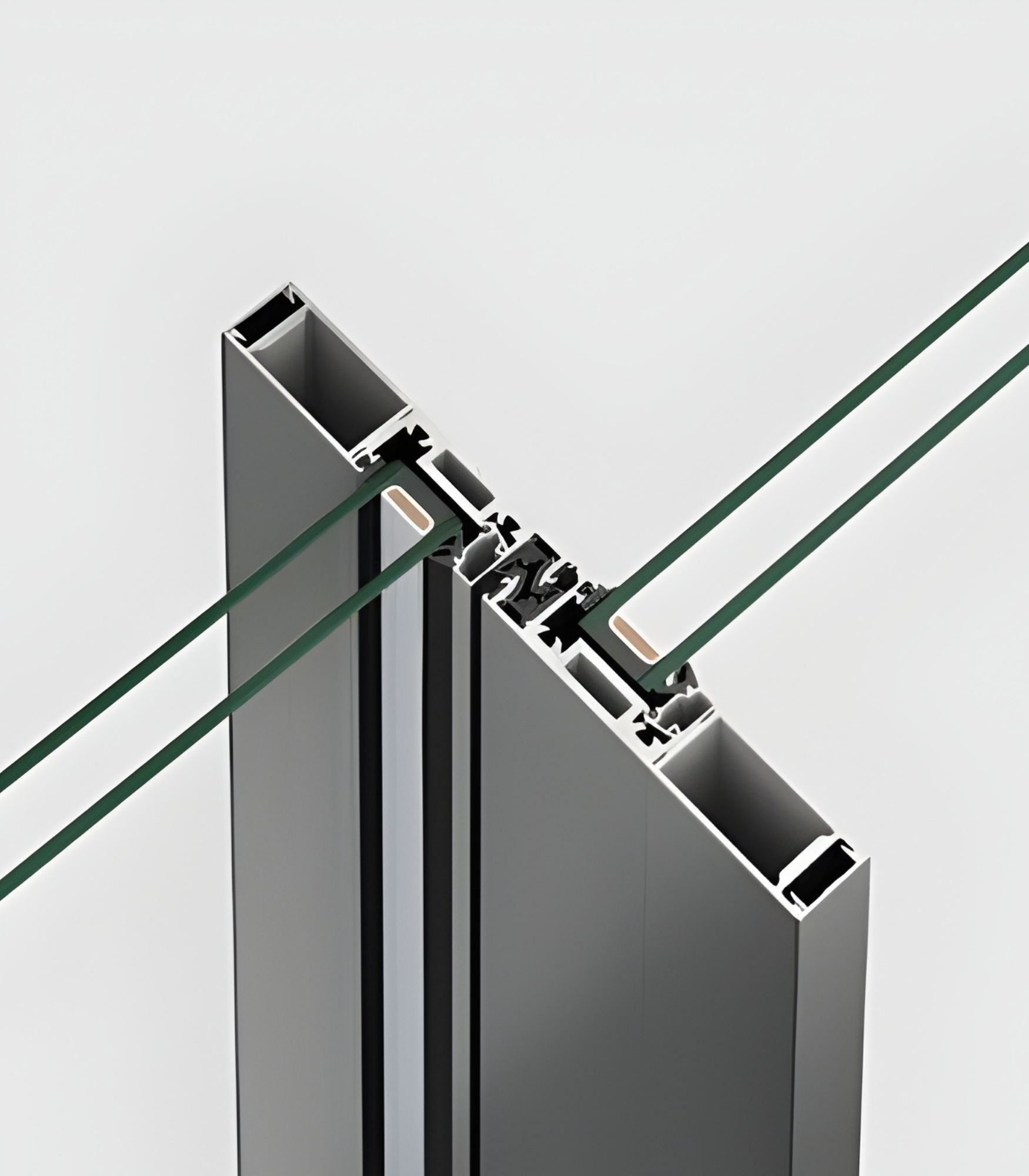

Airtightness & Weather Seal. The door uses continuous compression gaskets at the meeting stiles, head, and sill, which is what keeps fog-chilled air from leaking around the panels. We install the frame with AAMA 812-rated low-expansion foam sealant on every perimeter joint, so the sealed assembly extends beyond the door itself into the rough opening.

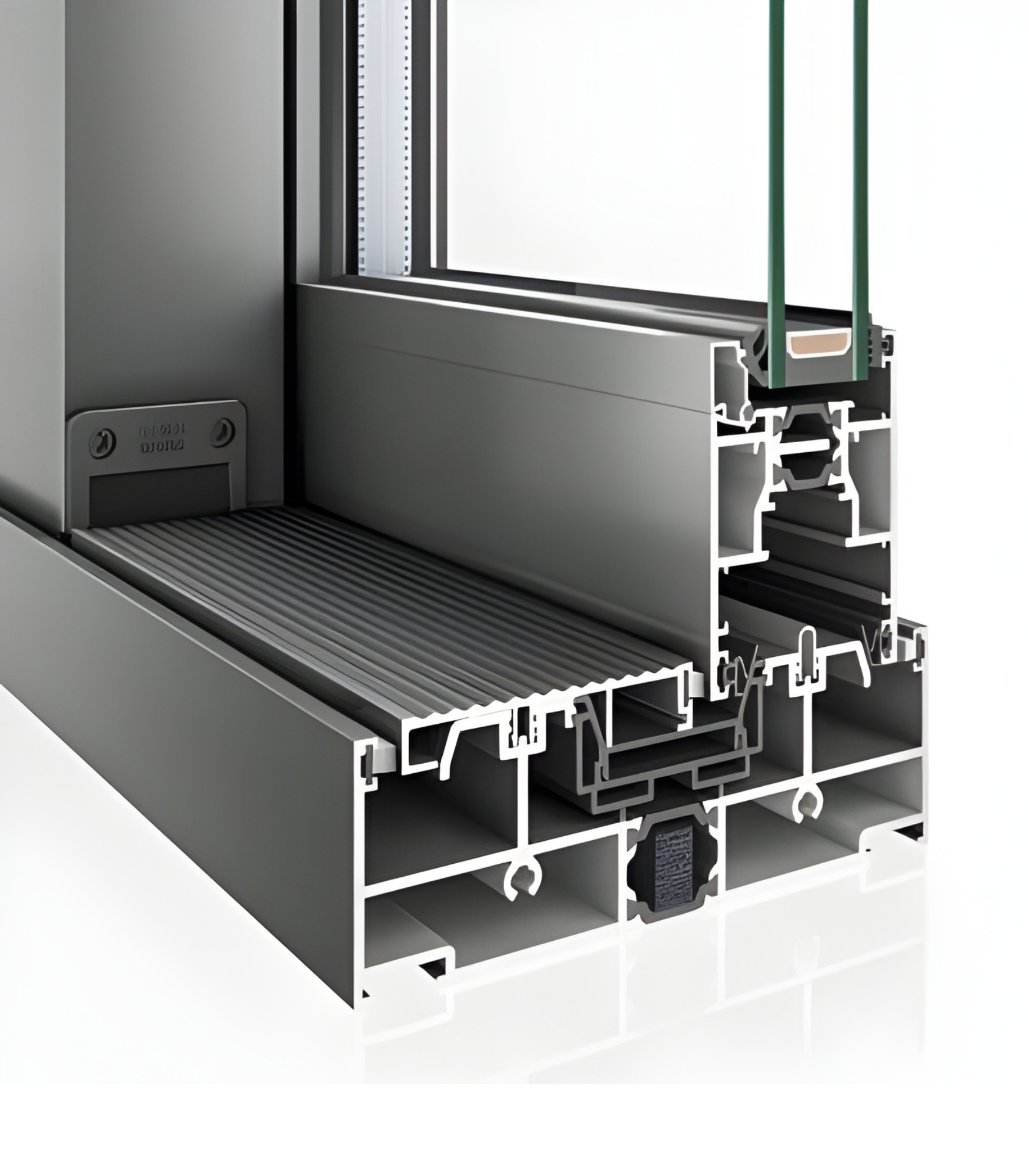

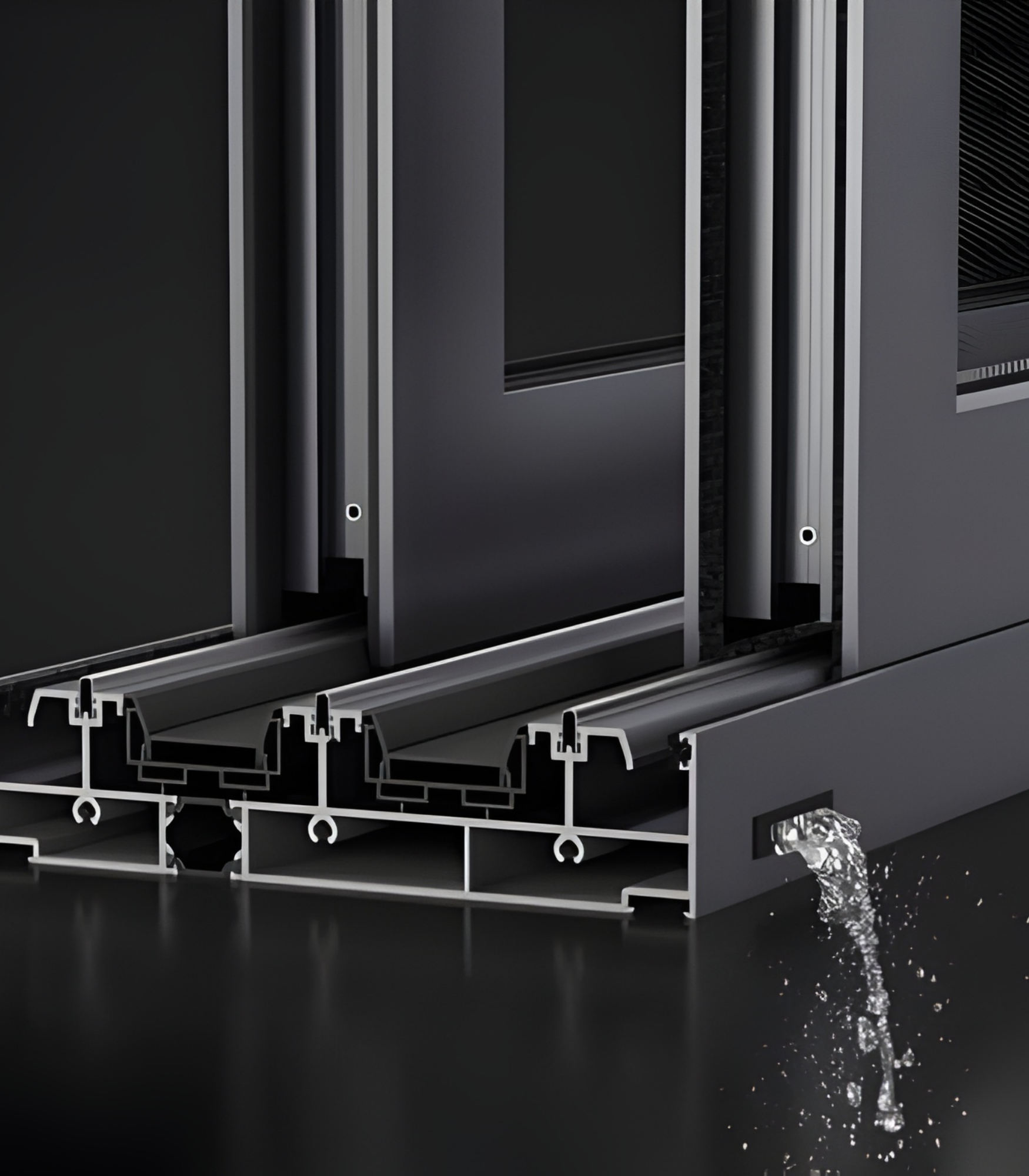

Waterproofing. The sill design includes an integrated drainage path that channels any water that gets past the first gasket line back outside, rather than into your subfloor. This matters on San Francisco hillsides where wind-driven rain hits doors at angles that flat-grade homes never see.

Wind Resistance. The VLX 150 is wind-load rated for coastal climate requirements, which covers exposed sites in the Outer Sunset, Outer Richmond, and any hillside home facing the Pacific or the bay. The 0.118-inch wall thickness is the reason this door passes wind-load testing that lighter sliders fail.

Security & Hardware. The multi-point locking hardware engages at multiple positions along the panel, not just one center latch. Combined with the stainless steel rollers and track, you get a door that’s difficult to pry open and a track that resists the corrosion that eventually weakens lesser hardware.

Color & Glass Options

The VLX 150 comes in six finish options, and the right choice depends on your San Francisco home. Premium Black reads as contemporary and suits new construction and modern remodels in neighborhoods like the Mission, Potrero Hill, and SoMa. Pure White works on classic 1920s and 30s homes where the door needs to feel like it was always there. Anodized Silver is the architectural standard for mid-century homes in areas like Diamond Heights and the Sunset’s 1960s housing stock. Bronze carries a deeper, warmer metal tone that flatters Craftsman and Edwardian trim. Champagne is a lighter warm tone that splits the difference between silver and bronze. Teak Wood is a wood-grain transfer finish designed for homeowners who want the look of wood without rot, warping, or repainting every few years in San Francisco’s wet-dry cycles.

Glass selection depends on what you’re solving for. Clear maximizes natural light and is the default choice for budget-conscious buyers. Low-E is the upgrade we recommend for almost every San Francisco installation since it cuts UV fading and improves thermal performance. Tempered is required by code for large panels and safety glazing near walking surfaces. Laminated is the impact-resistant option and the one we suggest for ground-floor doors, homes in wind-exposed areas, and anyone who wants the strongest security glass available. Gray Tint and Black Tint reduce glare and add privacy, which is valuable if your door faces a busy street or a neighboring building a few feet away.

Installation by Meridian Windows and Doors San Francisco in San Francisco

Here’s the truth about aluminum sliding doors: the product can be excellent, and a bad installation will still ruin it. A door that isn’t set level, plumb, and square will bind, leak, or fail within a few years. The manufacturer warranty on a ViewLux door is conditioned on proper installation. If a general contractor or a handyman installs it wrong, the warranty claim gets denied and you’re paying for the fix out of pocket.

We install the VLX 150 the way the manufacturer and the industry standards require. The process starts with a pre-installation inspection of the rough opening. We check the substrate, verify dimensions, and confirm that the supporting header is adequate for a 24-foot span if that’s what you’re installing. Then we set the frame level, plumb, and square using shims at the proper intervals, and mechanically anchor the frame to the structure.

Every perimeter joint gets AAMA 812-rated low-expansion foam sealant, which seals the gap between the door frame and the rough opening without warping the frame as it cures. The entire installation follows AAMA 2400/2410, which is the North American standard for window and door installation practice. Once the panels are in and adjusted, we run a water test on the sill and lower corners, then check panel travel across the full length of the track. We don’t leave until the door slides smoothly, seals tightly, and drains correctly.

San Francisco adds its own considerations. Builders in the city deal with strict energy code requirements under Title 24, which the VLX 150’s Low-E glass and thermal break support. Many neighborhoods have planning or HOA review processes for visible exterior changes, and we can provide the spec documentation your architect, reviewer, or HOA board needs. We’ve installed doors across the city, from corner condos in SoMa to single-family homes in Bernal Heights, and we know what each type of building requires.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door?
Lead time for the VLX 150 typically runs 4 to 6 weeks from order confirmation, depending on the glass package, finish, and track configuration you select. Custom spans over 16 feet and laminated or tinted glass can add time. We confirm lead time in writing before you pay anything. Call (831) 273-7126 and we’ll give you a current estimate for your specific configuration.

Does the VLX 150 qualify for energy tax credits?
The VLX 150 with Low-E glass meets the performance requirements for many energy efficiency programs, but whether you qualify depends on the specific glass package, your project scope, and the current federal and state tax code at the time of purchase. We’re not tax advisors, but we’ll provide the NFRC documentation you need to check eligibility. Call (831) 273-7126 to discuss your project.

What warranty comes with the Heavy-Duty Sliding Door?
The VLX 150 carries a manufacturer’s warranty through ViewLux, and the warranty only stays valid when a qualified installer does the work per AAMA 2400/2410. Our installation work is also covered by our own workmanship warranty. If a hardware issue or a seal failure comes up, you’re dealing with us, not chasing a faceless manufacturer. Call (831) 273-7126 for details on the current warranty terms.

Can I customize the size of the VLX 150?
Yes, the VLX 150 is built to your rough opening dimensions up to the 24-foot maximum span. This isn’t a stock-size product pulled off a shelf. We take exact measurements during the on-site visit and the door is fabricated to match those dimensions within the series’ engineering limits. Call (831) 273-7126 to schedule a measurement.

How do I maintain aluminum frames?
Clean the frame and track with mild soap and water two or three times a year, and keep the track clear of debris. San Francisco’s salt air and fog mean coastal homes should rinse the exterior frame more often. Avoid abrasive cleaners and solvents on the finish. Moving hardware parts benefit from occasional silicone spray. If the door ever needs an adjustment, call us at (831) 273-7126 and we’ll handle it.

Get a Quote – VLX 150 Heavy-Duty Sliding Door in San Francisco

If you’re planning a wide-span sliding door in San Francisco, the VLX 150 is worth a serious look, and you’ll get the straight answers from us on price, lead time, and installation. Call Meridian Windows and Doors San Francisco at (831) 273-7126 to schedule a free on-site measurement and get a written, line-item quote. We’ll bring the samples, measure the opening, and tell you exactly what the project will cost before any work begins.

Written by the team at Meridian Windows and Doors San Francisco, authorized ViewLux installation partner serving San Francisco, CA.
