VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in San Francisco, CA | Meridian Windows and Doors San Francisco

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door built around a minimalist frame and a multi-point locking system. You’ll see this door on contemporary remodels in Noe Valley, new builds in the Mission, and mid-century refreshes throughout San Francisco, CA. It’s the entry door people choose when they want clean sightlines, a substantial feel, and hardware that actually secures the opening. Meridian Windows and Doors San Francisco is an authorized ViewLux installation partner, which means the door you buy is installed by a crew trained to the manufacturer’s standards, then backed by a real workmanship warranty. Call (831) 273-7126 to talk specs, lead times, or to get a free measurement on the books.

Call (831) 273-7126

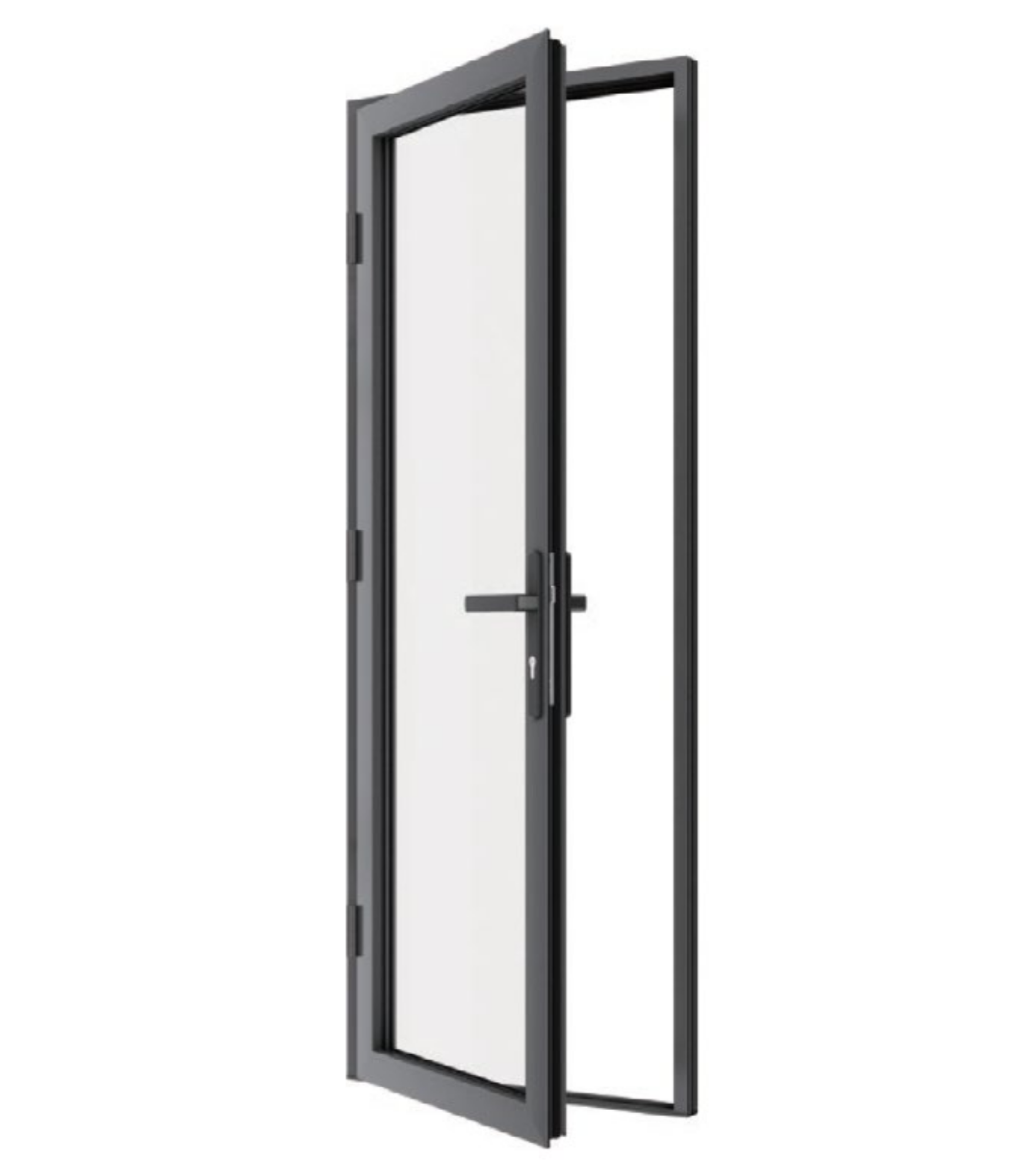

Product Overview – VLX 100 Swing / Entry Door

The VLX 100 Swing / Entry Door solves a problem that a lot of San Francisco homeowners don’t realize they have until they live with a bad entry door for a year. Fogged glass. Drafts at the threshold. A lock that feels flimsy. A frame that’s drifted out of square because the house settled. This is a modern aluminum swing door designed as a single entry with a minimalist frame and multi-point locking. The frame is thin enough to disappear into the wall plane, which is the look most architects and designers are after, but the aluminum section is deep enough to carry serious hardware and stay square over decades.

Where does this door fit? Think of a front entry on a rebuilt Edwardian in the Richmond District, a rear entry off a kitchen in Potrero Hill, or a side-yard door on a modern infill house in Bernal Heights. The VLX 100 reads as quiet and precise, not industrial. It works as a primary front door, but we also install it as a rear or side entry where the homeowner wants the same thermal performance and security as the front of the house. Buyers choose this series when they want an entry door that doesn’t warp, doesn’t rust from the marine air that rolls through the Sunset, and doesn’t need a finish repainted every three years. The aluminum is the finish, and it stays that way.

The engineering underneath the clean lines is what actually matters. A thermally broken profile. A multi-point lock that engages the jamb in several places, not just one deadbolt at waist height. Perimeter seals that account for San Francisco’s wind-driven rain patterns. Glass options that hold up to impact. This is a door built for a specific job: look minimal, perform maximum. That balance is why the VLX 100 shows up so often in our San Francisco, CA installs.

If you’re considering this door, call (831) 273-7126. We can walk you through the options that make sense for your opening and your neighborhood’s exposure before you commit to anything.

Technical Specifications

Here’s what the VLX 100 Swing / Entry Door is made of, in plain terms. The aluminum wall thickness is 0.098 inches, which gives the frame real structural weight without making the door feel bulky. The profile width is 2.56 inches, slim enough to keep the minimalist look, wide enough to house the multi-point hardware and thermal break. The door spans up to 48 inches wide as a single panel, which covers most standard San Francisco entry rough openings without needing a custom static sidelight.

• Wall thickness: 0.098″ aluminum extrusion
• Profile width: 2.56″ visible frame
• Maximum span: Up to 48″ wide, single panel
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, None
• Locking: Multi-point locking system, standard

Every panel is glazed to order, so the glass and finish combination is chosen for your specific opening, not pulled from stock. Meridian Windows and Doors San Francisco measures every opening before ordering, which means no shim-stuffed frames or field-cut glass on install day.

Performance Features

Thermal Efficiency – The VLX 100 uses a thermal break inside the aluminum profile, which stops the frame from conducting outside temperature into your home. That matters in San Francisco’s microclimates, where a foggy Outer Richmond afternoon and a sunny Mission afternoon can be 15 degrees apart. The frame is built to hold Low-E glass, and the assembly is NFRC-rated for energy performance so you’re looking at real numbers, not marketing.

Acoustic Performance – The combination of a thermally broken frame, laminated glass options, and full-perimeter seals gives the VLX 100 meaningful sound reduction. This is a big deal on busy streets in the Mission, Noe Valley, or anywhere near the Muni lines. Laminated glass, which layers a sound-dampening interlayer between two panes, is the upgrade we recommend most often for noise.

Airtightness & Weather Seal – This door is gasketed around the entire panel, not just the bottom sweep. The result is an opening that doesn’t whistle when the wind kicks up on Twin Peaks or along the Embarcadero. Proper perimeter sealing also keeps conditioned air inside, which is why the door earns the air infiltration ratings it does when installed per AAMA standards.

Waterproofing – San Francisco gets rain the way it gets everything else: sideways and wind-driven. The VLX 100 is designed with integrated weep paths that shed water away from the interior, and the threshold is engineered so water doesn’t pond at the base of the door. When we install it, we add the AAMA 812 low-expansion foam sealant at every perimeter joint, which is the same practice we use on window installs across San Francisco, CA.

Wind Resistance – Aluminum is stiff, and a 0.098″ wall thickness is not a flimsy extrusion. The VLX 100 is wind-load rated for the exposure conditions common in San Francisco’s hilltop homes and coastal zones. If you’re up on a ridge in Diamond Heights or overlooking the ocean, this door isn’t going to bow under pressure the way a hollow vinyl door will.

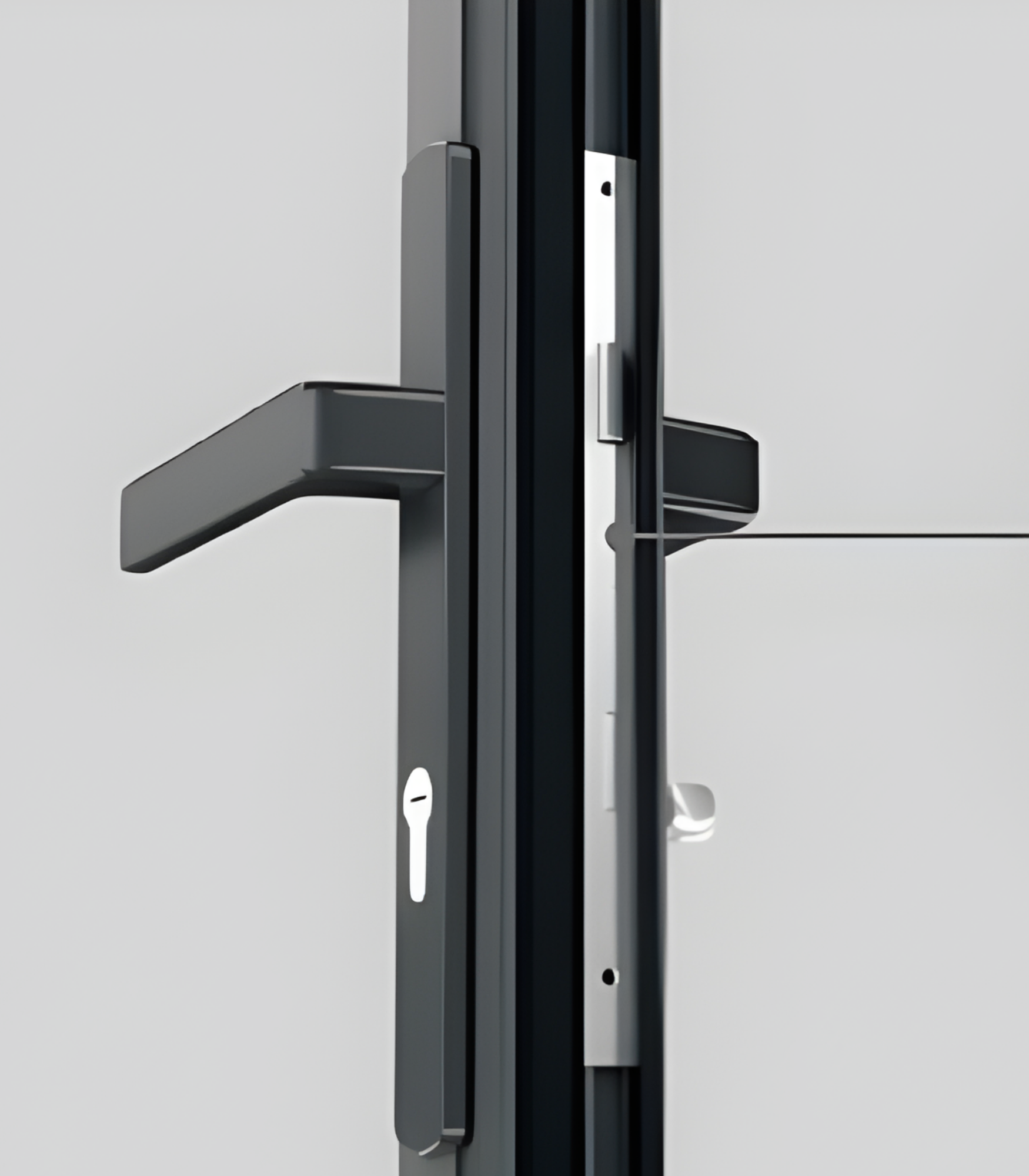

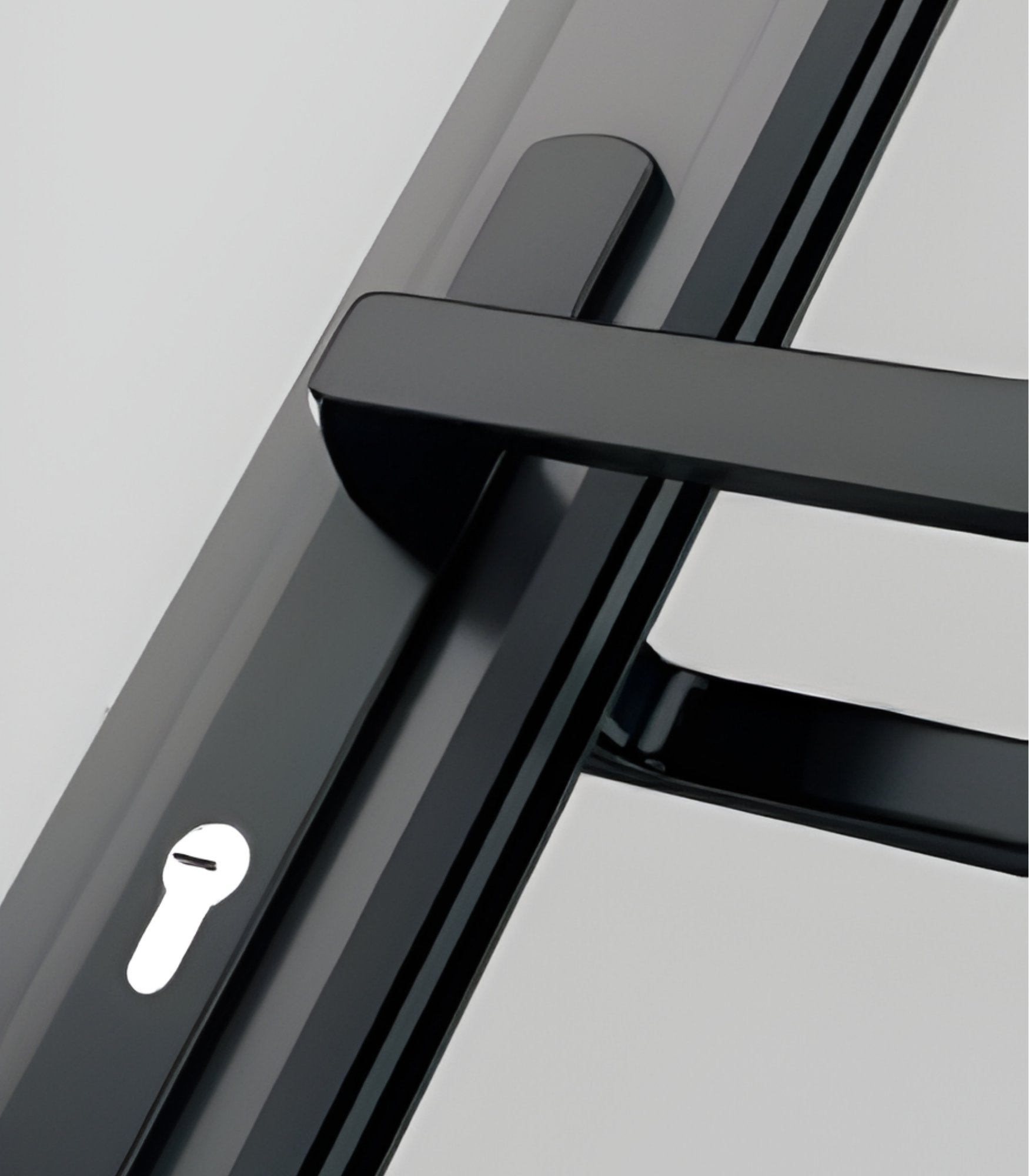

Security & Hardware – The multi-point lock is the standout here. Instead of a single latch, the lock engages the frame in multiple places along the door edge when you lift the handle. That distributes force across the entire door, making it dramatically harder to kick in or pry open. It also pulls the door tighter against the seals, which improves both weather performance and acoustics. Laminated glass adds another layer of security, since it resists shattering.

Color & Glass Options

The VLX 100 comes in six finishes, and the right one depends on the house. Premium Black is the most requested color in San Francisco right now, especially on modern white-stucco or cedar-clad homes. Pure White works on coastal homes in the Outer Sunset where the palette is soft and bright. Anodized Silver has a cool, industrial clarity that suits mid-century and contemporary remodels in the Mission and Potrero Hill. Bronze and Champagne are warmer metals; they read more traditional and pair well with brick Edwardians or Victorians that have gold-toned hardware. Teak Wood is a wood-grain finish over aluminum, which lets you get the look of a wood entry door without any of the maintenance, and it fits the restored facade look in neighborhoods like Pacific Heights and Cole Valley.

Glass choice changes both the feel and the function. Clear glass is for maximum light and visibility. Frosted lets the light in but stops people from seeing straight through, which is useful for side entries near property lines. Obscure goes further in the same direction, with a texture that breaks up the view completely. Low-E is the coating upgrade for energy performance. Tempered glass is safety-rated to break into small granules rather than sharp shards. Laminated is the one we recommend for security and sound: it holds together even when struck hard. Most San Francisco entry doors we install use Low-E combined with either tempered or laminated, depending on exposure and street-level security concerns.

Installation by Meridian Windows and Doors San Francisco in San Francisco

Installing a swing door in San Francisco is rarely as simple as pop-out, pop-in. Most of the homes we work in are 70 to 120 years old. The rough openings are out of square. The floors slope. The exterior walls are lathe and plaster, or stucco over redwood, or sheetrock over balloon framing. An aluminum door will not forgive a sloppy install. It will bind, or leak, or the multi-point lock won’t line up, and the manufacturer warranty won’t cover a failure caused by bad installation. This is the main reason Meridian Windows and Doors San Francisco exists as an authorized ViewLux installation partner: the product and the install have to match.

Our process starts with a pre-install inspection. We measure the opening in three places, check the subfloor and threshold condition, and look for hidden rot or settling before we order the door. That step alone prevents most ordering mistakes, and it’s the difference between a three-week lead time and a three-month correction.

On install day, the frame goes in level, plumb, and square. Not close. Not shimmed until it looks right. We use expansion foam sealant meeting AAMA 812 at every perimeter joint, which seals out air and water while still allowing the building to move. The entire installation follows AAMA 2400 and 2410, the industry standards for fenestration installation in low-rise and mid-rise buildings. Those standards exist specifically for climates like San Francisco’s, where wind-driven rain and thermal movement punish shortcuts.

After the door is set, we run a water test on the threshold and lower corners, check that the multi-point lock engages cleanly at every point, and clean the site. You’re not left with a pile of shims and old caulk. You’re left with a door that closes with one hand and seals like a window.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in San Francisco

The fastest way to get a real number is to have us measure the opening. Every quote we give for the VLX 100 Swing / Entry Door is a written, line-item price based on your actual site conditions, not a rough square-foot guess. We’ll help you choose the glass, the finish, and the hardware that make sense for your house and your budget. Call (831) 273-7126 to schedule a free on-site measurement and start the conversation.

Written by the team at Meridian Windows and Doors San Francisco, serving San Francisco, CA as an authorized ViewLux installation partner for premium aluminum windows and doors.
